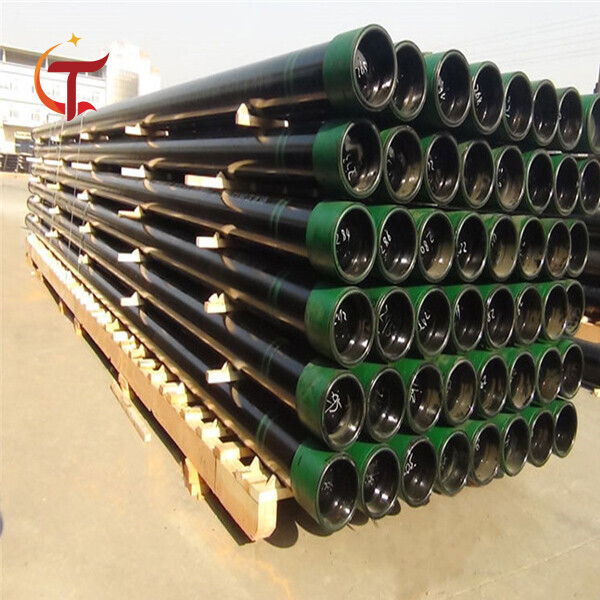

Tubing Pipe
Production technology:Plain pipe-end upsetting- Austenite treatment-Quenching-Tempering-straightening-(Non-Destructive Testing)- Threading-Thread inspection-coupling MPI-phosphating-Coupling make up-Drifting-Hydrostatic testing-Measuring&Weight-Marking&Stenciling-Coating-Packing Casing and tubing-Transportation
+86 16600268439
+86 16600268439
+86 16600268439
bg02@cn-tiangang.com
Contact Us

Product Description

Product Type: API Tubing,EUE Seamless Tubing；NU Seamless Tubing；Premium Tubing
Outer Diameter (OD):48.26mm-114.30mm
Wall Thickness(WT):3.18mm-16mm
Length:R1, R2, R3
Standard:API 5CT J55,N80-1,V80-Q;L80-1;L80-9Cr;L80-13Cr;C90;C95;P110,Q125
Materials: H40, J55, K55, N80, L80, C90,T95 and P110
Thread type:NUE.EUE,BAM,Special clearance,VAN TOP,NEW VAM
Application:Oil Tubing is widely used for transporting crude oil and natural gas to surface after drilling, which also bears pressure from exploration.
Production technology:Plain pipe-end upsetting- Austenite treatment-Quenching-Tempering-straightening-(Non-Destructive Testing)- Threading-Thread inspection-coupling MPI-phosphating-Coupling make up-Drifting-Hydrostatic testing-Measuring&Weight-Marking&Stenciling-Coating-Packing Casing and tubing-Transportation


API 5CT Oil Tubing Dimension:
LabelOD (mm)WT (mm)Type of End-finish
InchNU T&CEU T&CIJH40J55L80N80C90T95P110
1.92.752.92.7648.263.68PNUIPNUIPNUIPNUIPNUIPNUI-
1.93.653.73-48.265.08PUPUPUPUPUPUPU
1.94.42--48.266.35--P-PP-
2 3/84--60.324.24PUPNPNPNPNPN-
2 3/84.64.7-60.324.83PNUPNUPNUPNUPNUPNUPNU
2 3/85.85.95-60.326.45--PNUPNUPNUPNUPNU
2 3/86.6--60.327.49--P-PP-
2 3/87.357.45-60.328.53--PU-PUPU-
2 7/86.46.5-73.025.51PNUPNUPNUPNUPNUPNUPNU
2 7/87.87.9-73.027.01--PNUPNUPNUPNUPNU
2 7/88.68.7-73.027.82--PNUPNUPNUPNUPNU
2 7/89.359.45-73.028.64--PU-PUPU-
2 7/810.5--73.029.96--P-PP-
3 1/27.7--88.95.49PNPNPNPNPNPN-
3 1/29.29.3-88.96.45PNUPNUPNUPNUPNUPNUPNU
3 1/210.2--88.97.34PNPNPNPNPNPN-
3 1/212.712.95-88.99.52--PNUPNUPNUPNUPNU
3 1/214.3--88.910.92--P-PP-
3 1/215.5--88.912.09--P-PP-
49.5--101.65.74PNPNPNPNPNPN-
410.711-101.66.65PUPUPUPUPUPU-
413.2--101.68.38--P-PP-
416.1--101.610.54--P-PP-
4 1/212.612.75-114.36.88PNUPNUPNUPNUPNUPNU-
4 1/215.2--114.38.56--P-PP-
P-Plain end; N-Non Upset;U-External upset;T&C-Threaded and coupled
Chemical Composition & Mechanical Properties






Mechanical Properties:
GradeTypeTotal elongation under load (%)Yield strength (min)Yield strength (max)Tensile strength min MpaHardness Max (HRC)Hardness Max (HBW)
J55-0.5379552517--
K55-0.5379552655--
N8010.5552758689--
N80Q0.5552758689--
L8010.555265565523241
L809Cr0.555265565523241
L8013Cr0.555265565523241
C90-0.562172468925.4255
C95-0.5655758724--
T95-0.565575872425.4255
P110-0.6758965862--
Q125All0.658621034931--
SizesODWeightwtType of end
12DNU kg/mEU kg/mIJt
NUEUIJmmkg/mmm



H40J55L80N80C90T95P110
12345678910111213141516
















49.5––101.614.14––5.74PNPNPNPNPNPN–
410.711–101.6–16.37–6.65PUPUPUPUPUPU–
413.2––101.619.64––8.38––P–PP–
416.1––101.623.96––10.54––P–PP–
418.9––101.628.13––12.7––P–PP–
422.2––101.633.04––15.49––P–PP–
2004/1/212.612.75–114.318.7518.97–6.88PNUPNUPNUPNUPNUPNU–
2004/1/215.2––114.322.62––8.56––P–PP–
2004/1/217––114.325.3––9.65––P–PP–
2004/1/218.9––114.328.13––10.92––P–PP–
2004/1/221.5––114.332––12.7––P–PP–
2004/1/223.7––114.335.27––14.22––P–PP–
2004/1/226.1––114.338.84––16––P–PP–
P——Plain end;N—Non-upset threaded and coupled;U—External upset threaded and coupled;I—insert joint.


Product Show



Application

  • Application.jpg

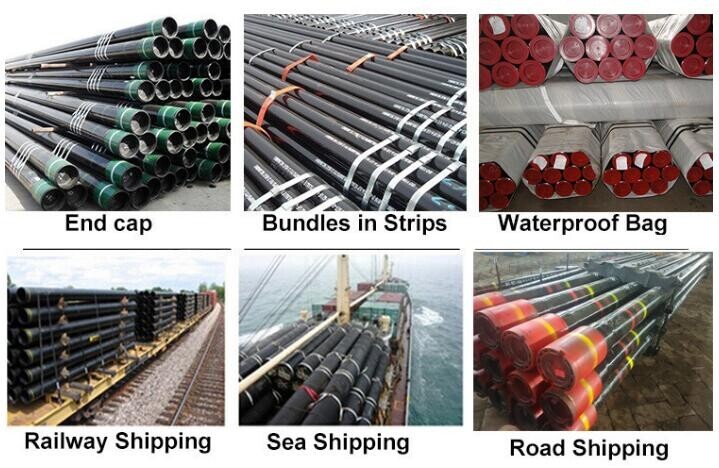

Packaging And Transportation

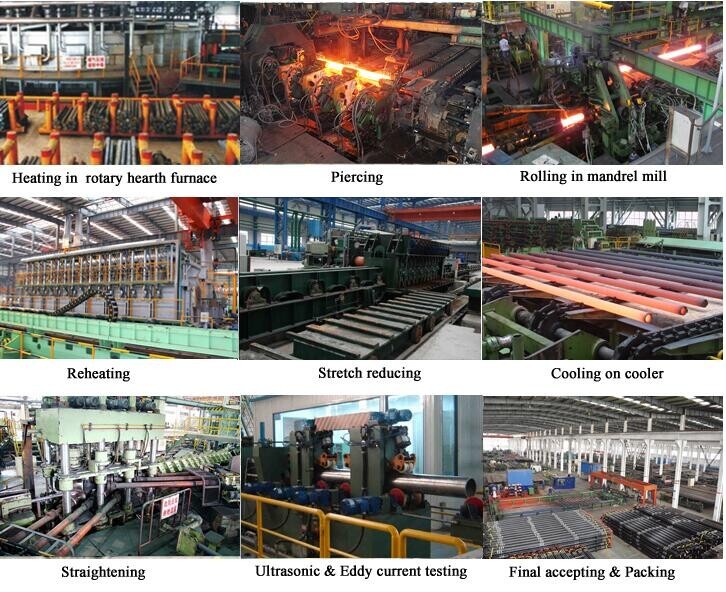

Factory Display

Certificate Display

  • 天钢CE.jpg
  • 0b.jpg
  • 0b8ab2e.jpg
  • 0b8abe5aed08152e.jpg
  • 0b8abe5aed08152842e.jpg
  • 0b8abe5aed08152843e937f163e422e.jpg
  • 0b8abe5aede.jpg
  • 0b8abe5aee937f163e422e.jpg
  • 0b82e.jpg
  • 0e.jpg
  • 03e71696e0e0e5e1bd00ecd4a3a161a.jpg
  • 2568a7ef2a7dfd8f3a1949d26a7fedd.jpg
  • 204259db1882e630a18249f56384f61.jpg
  • ecde0393076e13b590570dc79872afa.jpg
  • fb104eed1b9b9a3de81abad6baba0cc.jpg

FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of pipeline products located in Tianjin，China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.
Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
